Purified Water Equipment Process Flow: Stages, Equipment Logic & Operational Boundaries

Who This Applies To

This process flow explanation is designed for procurement managers, plant engineers, and operations leads evaluating purified water equipment for beverage, food, pharmaceutical, or industrial applications — particularly those sourcing from manufacturers in China’s Guangdong province. It reflects actual configurations used in Chuxin Mingwei’s fully automatic bottled purified water filling production lines (Product ID #59) and barrelled purified water systems (Product ID #54), both built around dual-stage reverse osmosis (RO) core purification.

Why Process Flow Matters — Beyond the Schematic

A purified water system isn’t a sequence of boxes on a diagram. Its stability, long-term maintainability, and regulatory readiness depend on how stages interlock — especially under variable source water conditions. For example, without proper pre-treatment matching (e.g., multi-media + activated carbon + softening), RO membranes foul faster, increasing downtime and replacement cost. Likewise, omitting ozone + UV (254 nm) sterilization after RO — as standard in Chuxin’s purified water lines — risks microbial regrowth in storage and distribution loops.

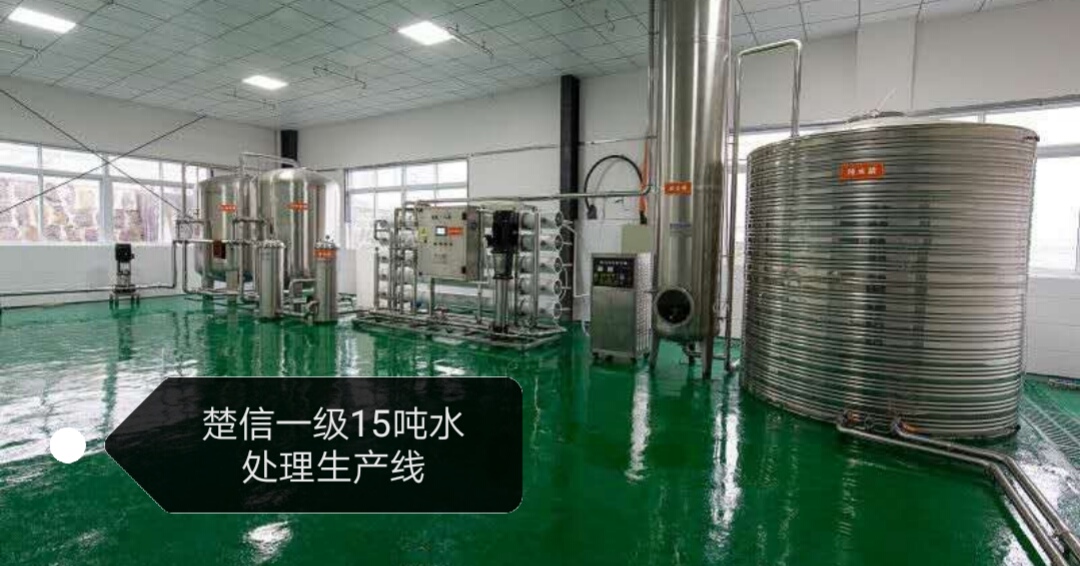

Core Process Flow: Five Integrated Stages

1. Raw Water Pre-Treatment

• Purpose: Remove suspended solids, chlorine, organics, hardness, and fine particles that damage RO membranes or compromise final quality.
• Typical configuration: Multi-media filter → activated carbon filter → water softener → 5 µm保安 filter.
• Boundary note: Pre-treatment must be calibrated to your original water report — not generic assumptions. TDS, hardness, iron/manganese, and turbidity directly determine filter sizing, resin type, and chemical dosing (e.g., antiscalant, pH adjuster).

1. Dual-Stage Reverse Osmosis (RO)

• Purpose: Achieve deep desalination and consistent low-conductivity output (<10 µS/cm typical), required for purified water standards (e.g., GB 17323, USP Purified Water).
• Equipment logic: First-stage RO removes ~95–98% of dissolved salts; second-stage further reduces conductivity and ensures robustness against feed fluctuations. Each stage includes high-pressure pump, membrane housing, flow/pressure instrumentation, and CIP-ready design.
• Operational boundary: Recovery rate (typically 50–75%) must balance water efficiency with scaling risk — determined by source water LSI/S&DSI indices, not preset defaults.

1. Post-RO Disinfection & Polishing

• Purpose: Prevent microbial proliferation post-membrane, where nutrient-poor but biologically active water can support biofilm growth.
• Standard configuration: Ozone generator + mixing contact tank → UV sterilizer (254 nm wavelength) → 0.22 µm terminal filter.
• Evidence-based note: In Chuxin’s field-deployed systems, this dual-barrier approach achieves ≥4-log reduction of bacteria and eliminates need for frequent hot-water sanitization — critical for continuous operation in food-grade environments.

1. Storage & Distribution Loop

• Purpose: Hold treated water while maintaining microbiological integrity and pressure stability for downstream filling.
• Key components: Stainless steel sanitary water tank (with spray ball & vent filter), constant-speed or VFD-controlled booster pump, recirculation loop with temperature monitoring and UV re-circulation.
• Boundary reminder: Tank volume must match peak hourly demand plus
• buffer for RO downtime (e.g., 1.5–2× hourly capacity). Loop velocity (>1.0 m/s) and slope are non-negotiable for preventing stagnation.

1. Filling Integration (Bottled or Barrelled)

• Purpose: Transfer purified water into final packaging without recontamination.
• Implementation logic: For bottled lines (e.g., Product #59), purified water feeds a PLC-controlled washing-filling-capping unit with ≤±2 mL filling accuracy. For barrelled lines (e.g., Product #54), it supplies a wash-fill-seal system with triple-layer disinfection (internal wash + ozone + UV) validated per SC-compliant SOPs.
• Critical interface: Water supply pressure, flow consistency, and air-free delivery must align with filling machine specs — mismatch causes fill variation, foaming, or cap seal failure.

What’s Not Included — And Why

This flow does not cover ultra-high-purity applications (e.g., EDI, mixed-bed polishing), which fall outside standard purified water scope and require separate design (see our Electronics or Pharma-specific guides). Nor does it assume shared water treatment between bottle and barrel lines — co-use is possible only if both lines operate synchronously, share identical quality targets, and include independent final filtration and sterilization before each filling point.

Next Step: Validate Your Specific Flow

Before finalizing layout or budget, confirm:

• Your original water test report (TDS, hardness, Fe/Mn, SDI, microbiology)
• Target output standard (e.g., GB 17323, FDA 21 CFR Part 129, internal spec)
• Hourly production rate and shift pattern
• Available floor space, power supply (voltage/frequency), and drainage capacity

Chuxin Mingwei engineers use these inputs — not generic templates — to configure your exact process flow, equipment list, and installation plan.
