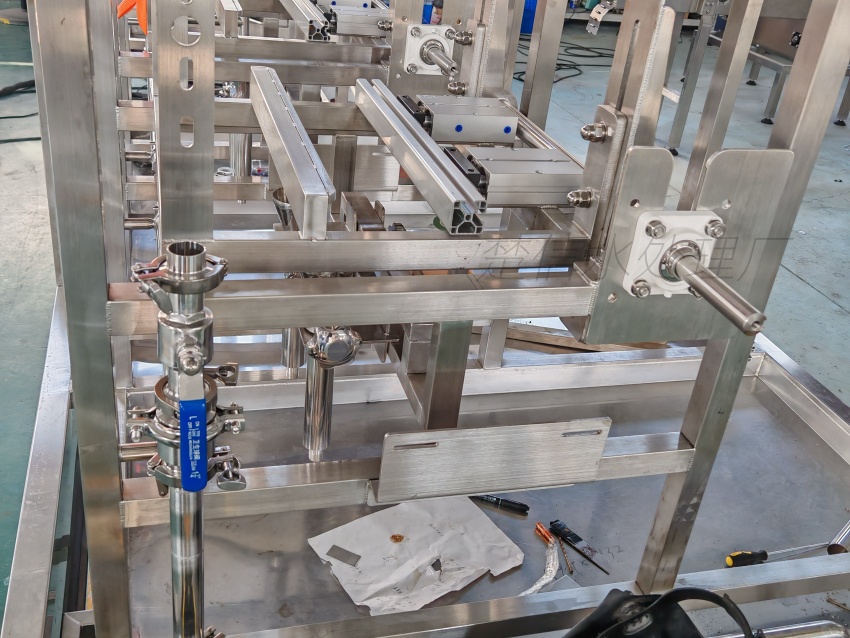

Bottled Purified Water Filling Line: Validating Capacity, Purity, and Scope for Cross-Regional Projects

The Core Decision Challenge

For procurement managers and operations leads coordinating a Bottled Purified Water Filling Line across different regions or facilities, the primary risk is not equipment availability, but the misalignment between nominal specifications and actual site constraints. A common failure point occurs when teams select a line based solely on "bottles per hour" ratings without accounting for the specific purification depth required by their source water or the physical layout limitations of their facility.
Chuxin Mingwei approaches this by engineering non-standard, site-specific solutions. The decision process must shift from comparing generic brochures to validating three critical dimensions: water quality matching, true capacity calculation, and defined service boundaries.

1. Validating the Purification Process Against Source Water

The term "purified water" implies a specific quality standard that varies by source. For a Bottled Purified Water Filling Line, the core treatment process typically relies on a two-stage RO (Reverse Osmosis) system combined with ozone and UV sterilization.

• Decision Check:*
• Does your source water report justify a dual-stage RO configuration?
• If your raw water has high salinity or variable TDS, a single-stage system may fail to meet consistent product standards. Chuxin Mingwei's customized lines integrate dual-stage RO deep purification
• to ensure stable conductivity levels, followed by ozone and UV (254 nm) dual sterilization for final biological safety.
• Constraint:
• Do not assume a standard configuration fits all sources. As noted in technical guidelines, the necessity of double-stage RO depends entirely on raw water analysis and target quality, not just a desire for "higher specs."
• Action:*
• Submit your latest water quality analysis report. The engineering team must confirm whether pre-treatment steps like multi-media filtration, activated carbon, or softening are sufficient to protect the RO membranes before finalizing the design.

2. Calculating True Capacity vs. Nominal Ratings

A frequent error in cross-regional planning is equating the machine's rated speed with the factory's actual output. A line rated at 200–2,500 bottles/hour (compatible with 5L, 11.3L, and 18.9L formats) represents mechanical potential, not guaranteed production volume.

• Decision Check:*
• Have you accounted for non-filling water consumption and downtime?
• Real-world capacity must deduct water used for bottle rinsing, CIP (Clean-in-Place) cycles, and equipment flushing.
• Fact:
• Technical assessments indicate that final output calculations must include buffer tanks to balance short-term fluctuations between the water treatment unit and the filling block. Simply converting "bottles/hour" to "liters/hour" without factoring in process loss leads to under-sized raw water tanks and production bottlenecks.
• Action:*
• Define your target net output per shift. The engineering proposal should include a material balance calculation that verifies if the proposed PLC-based intelligent control system can synchronize the water supply rate with the filling speed (accuracy ≤ ±2 mL) without causing idle time.

3. Defining Delivery and Integration Boundaries

In multi-site deployments, ambiguity about what is included in the "line" often causes delays. A Bottled Purified Water Filling Line is rarely a standalone plug-and-play unit; it is a segment of a larger workflow.

• Decision Check:*
• Is the scope limited to the monoblock, or does it include upstream and downstream integration?
• The core unit typically handles bottle washing, filling, and capping
• in a synchronized workflow. However, it does not automatically include upstream bottle blowing or downstream labeling and packaging unless explicitly specified.
• Boundary:
• The equipment is designed for non-carbonated purified water. If your product mix includes hot-fill products or carbonated beverages, the valve types, temperature controls, and pressure ratings must be re-engineered. Standard purified water configurations are not universally suitable for all liquid types.
• Action:*
• Clarify the handover points. Will the line connect to an existing conveyor system? Who supplies the bottle preforms and caps? The proposal must explicitly list included components (e.g., specific valve types, HMI interface) and excluded items (e.g., external air compressors, specific packaging materials).

Implementation Boundaries and Risk Control

Successful deployment relies on recognizing what the equipment cannot do without customization.

• Site Constraints:*
• The physical footprint must accommodate not just the filler, but the access space for maintenance and the routing of clean air systems if a cleanroom environment (ISO Class 8 or higher) is required.
• Operational Consistency:*
• The capping pass rate and filling accuracy are achieved under specific conditions regarding bottle quality and cap torque settings. Variations in bottle neck dimensions from different suppliers can impact these metrics.

Next Steps for Project Qualification

To move from a general inquiry to a validated engineering proposal:

1. Provide Data: Share your raw water analysis and target production capacity (net output).
2. Define Scope: Confirm the bottle formats (5L, 11.3L, 18.9L) and whether you require a full turnkey solution or specific machinery integration.
3. Review Boundaries: Discuss facility constraints and utility availability (power, compressed air, drainage) to ensure the customized filling solution matches your site's reality.

Chuxin Mingwei specializes in translating these specific constraints into stable, maintainable production lines. Contact our technical team to initiate a site-specific feasibility review.

Conclusion

Selecting a Bottled Purified Water Filling Line requires more than comparing speed ratings. It demands a rigorous check of water treatment compatibility, a realistic calculation of net capacity including process losses, and a clear definition of integration boundaries. By focusing on these verifiable factors, procurement teams can mitigate the risks of cross-regional deployment and ensure long-term operational stability.
