How to choose purified water system components: selection, rollout and support checklist

What Defines a Complete Purified Water System?

For procurement managers and operations leads in the beverage, food, and pharmaceutical sectors, a "purified water system" is not a single machine but an integrated chain of units. Each component addresses specific raw water characteristics and target quality standards. A well-engineered system balances purification efficiency with long-term operational stability, ensuring consistent output whether you are filling 18.9L barrels or 500mL bottles.

At Chuxin Mingwei, our engineering approach starts with your actual source water report. The configuration below represents the standard architecture for a robust purified water production line, designed to meet strict hygiene and conductivity requirements.

1. Pre-Treatment Stage: Protecting the Core Membranes

The longevity of your reverse osmosis (RO) membranes depends entirely on the quality of pre-treated water. This stage removes suspended solids, chlorine, and hardness that would otherwise foul or damage downstream equipment.

• Raw Water Tank & Pump: Provides stable feed pressure and volume buffering. The pump selection is critical to maintain consistent flow rates into the filtration train.
• Multi-Media Filter: Typically filled with quartz sand or graded media, this unit reduces turbidity, suspended solids, and large colloids. It acts as the first line of defense against physical particulates.
• Activated Carbon Filter: Essential for adsorbing residual chlorine, odors, and organic compounds. As noted in our process guidelines, removing chlorine is vital because free chlorine can irreversibly oxidize and damage RO membrane elements.
• Water Softener: Uses ion exchange resin to replace calcium and magnesium ions with sodium, preventing scale formation on RO membranes. This is particularly important for sources with high hardness.
• Security (Precision) Filter: A final polishing step using 5-micron cartridge filters to catch any fine particles before the water enters the high-pressure RO pump.

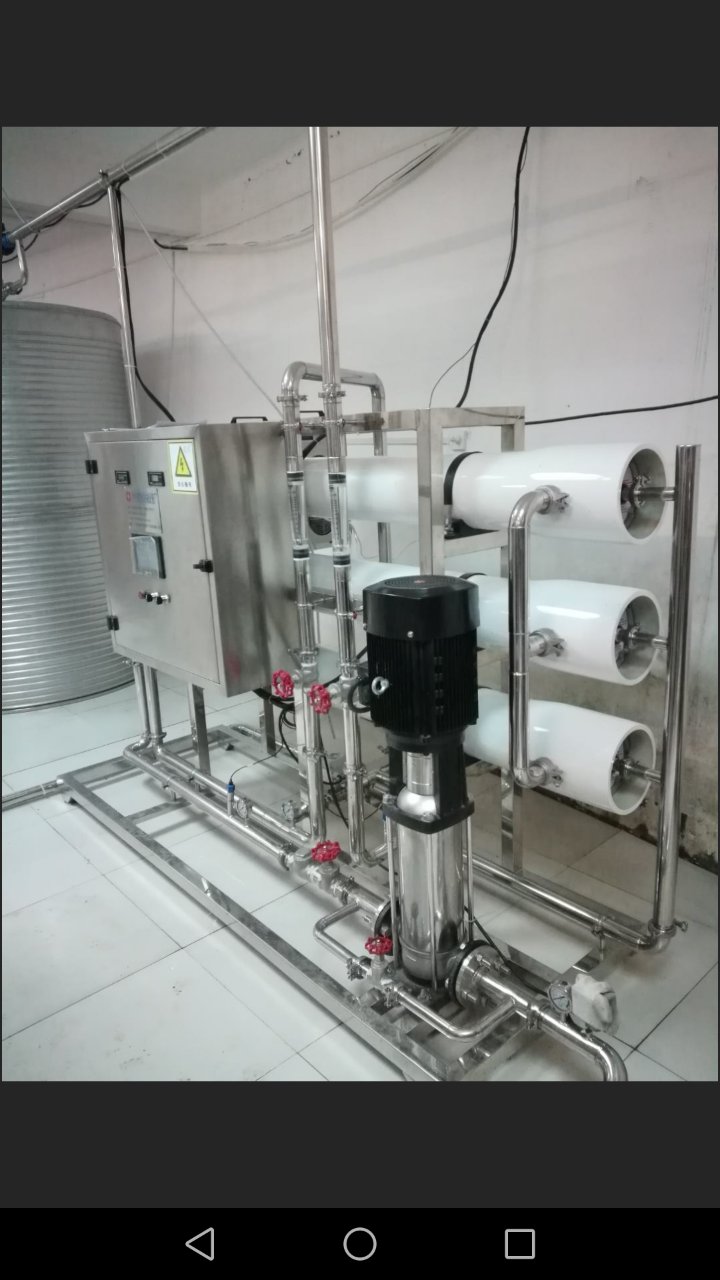

2. Core Purification: Reverse Osmosis (RO) System

The heart of the purified water system is the RO unit, which removes dissolved salts, heavy metals, bacteria, and most organic molecules.

• High-Pressure Pump: Generates the necessary pressure to overcome osmotic pressure and force water through the semi-permeable membrane.
• RO Membrane Housing & Elements: Depending on your target conductivity and raw water TDS, we configure either a single-stage
• or dual-stage RO system.
• Single-stage: Suitable for standard purified water applications where moderate demineralization is required.
• Dual-stage: The permeate from the first stage feeds the second, achieving significantly lower conductivity and higher purity, often required for sensitive beverage formulations or electronics rinsing.
• Instrumentation & Control: Integrated flow meters, pressure gauges, and conductivity meters allow for real-time monitoring of rejection rates and system health. PLC-based controls automate flushing and protection sequences.

3. Post-Treatment & Disinfection: Ensuring Microbial Safety

Once purified, the water must be protected from re-contamination before filling. This stage is critical for meeting microbial standards in bottled and barrelled water production.

• Ozone Generator & Mixing Device: Ozone is a powerful oxidant used for sterilizing the water and the interior surfaces of containers. Our systems include precise ozone dosing and mixing towers to ensure adequate contact time without excessive residual.
• UV Sterilizer: Often used as a secondary barrier or for degrading residual ozone before specific applications. UV units (typically 254 nm) provide physical disinfection without adding chemicals.
• Sterile Water Tank: Constructed from sanitary-grade stainless steel with breathing filters to prevent airborne contamination during storage.

4. Distribution & Circulation: Maintaining Quality to the Filler

A common failure point in many plants is the distribution loop. Stagnant water quickly loses its purity.

• Circulation Pump & Loop: A variable frequency drive (VFD) pump maintains constant pressure and velocity in the loop, preventing biofilm formation.
• CIP (Clean-in-Place) System: Integrated interfaces for automated cleaning and disinfection of tanks and pipelines without disassembly. This ensures the entire distribution network remains sanitary over years of operation.
• Online Monitoring: Continuous sensors for conductivity, ozone concentration, and flow rate provide data for quality assurance and regulatory compliance.

Implementation Boundaries & Selection Criteria

Selecting the right components requires more than just listing equipment; it demands a match between your specific constraints and the system's capabilities.

• Source Water Variability: A system designed for low-TDS mountain spring water will differ significantly from one treating high-salinity well water. The pre-treatment train must be customized based on a full water analysis.
• Capacity & Redundancy: For high-volume lines (e.g., >1,000 barrels/hour), parallel RO trains or larger storage buffers may be necessary to ensure continuous production during maintenance cycles.
• Regulatory Compliance: Different markets have varying limits for ozone residuals, conductivity, and microbial counts. The disinfection and monitoring components must be calibrated to meet your local food safety or pharmaceutical standards.

Next Steps for Your Project

A generic components list is only a starting point. To ensure stability, applicability, and long-term maintainability, your system must be engineered around your specific facility layout, raw water profile, and production targets.

Ready to define your exact configuration?
Share your raw water test report, target capacity, and packaging format with our engineering team. We will provide a tailored component list and process flow diagram that aligns with your operational goals.
