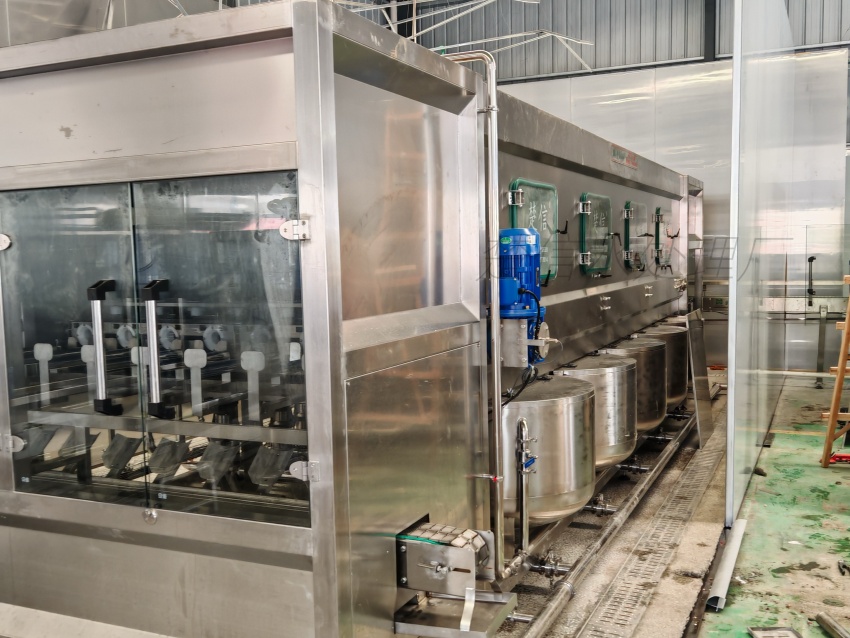

How a 3-in-1 Bottling Machine Works: Process Logic, Core Components & Real-World Application Boundaries

Why This Matters to Your Procurement Decision

Many beverage and water producers assume a "3-in-1 bottling machine" is a plug-and-play unit — only to face inconsistent fill accuracy, cap seal failures, or unexpected downtime during commissioning. These issues rarely stem from component failure. They arise when the machine’s process logic isn’t aligned with your water chemistry, bottle geometry, or facility constraints.

Chuxin Mingwei designs its 3-in-1 bottling machines — specifically the Bottled Spring Water Filling Production Line (ID: 60) and Fully Automatic Bottled Purified Water Filling Production Line (ID: 59) — as tightly coupled subsystems within an end-to-end water treatment and filling ecosystem. Their working principle reflects this integration — not just mechanical sequencing.

Core Working Principle: Synchronized Motion, Not Sequential Stages

Unlike standalone washers, fillers, or cappers, Chuxin Mingwei’s 3-in-1 machines operate on a continuous rotary indexing principle:

• Bottle handling: Empty bottles are fed via conveyor into a starwheel transfer system that indexes them precisely between stations.
• Washing: High-pressure nozzles deliver pre-rinse, alkaline wash, acid rinse, and final purified water rinse — all timed to match bottle dwell time and flow rate. For spring water lines, rinse water must meet ≥99.9% purity (post-NF+UF) to avoid mineral deposition; for purified lines, it must be RO-grade (≤5 µS/cm).
• Filling: Gravity or volumetric piston filling is synchronized with bottle positioning and pressure control. Filling accuracy is maintained at **≤ ±2 mL
• — validated under real load conditions using 18.9L PET bottles.
• Capping: Torque-controlled capping heads apply consistent sealing force. The system achieves a capping pass rate ≥99.6%, verified through inline torque monitoring and post-cap visual inspection.

All three functions share one PLC-based intelligent control system — enabling real-time coordination, fault logging, and parameter adjustment without breaking cycle timing.

Critical Application Boundaries (What It Doesn’t Do)

This machine is not a universal solution. Its performance depends on upstream and downstream conditions:

• Bottle compatibility: Designed for standard drinking water bottles — 18.9 L, 11.3 L, and 5 L — with defined neck geometry and wall rigidity. Non-standard shapes (e.g., oval, tapered, or ultra-thin walls) require custom tooling and validation.
• Water quality dependency: Spring water lines use a dual-membrane NF + UF process before
• filling to retain minerals while removing pathogens. Purified lines rely on dual-stage RO + ozone/UV sterilization upstream. The 3-in-1 unit assumes stable, pre-treated water meeting ISO 22000 hygiene standards — it does not purify water itself.
• Cleanroom integration: The machine is engineered for installation in ISO Class 8 (100,000) cleanrooms (see Clean Air Purification Systems, ID: 58). Ambient dust or humidity >60% RH risks cap seal integrity and sensor drift — requiring coordinated HVAC design.

When to Choose This Configuration

Select Chuxin Mingwei’s 3-in-1 system if your project requires:

• Stable output between 200–1,800 bottles/hour (18.9L)
• or 200–2,500 bottles/hour (5L) — with minimal manual intervention;
• Traceable, repeatable fill and seal performance across shifts;
• Seamless integration with your existing or planned water treatment line and clean air system;
• Long-term support including operator training, spare parts logistics, and remote diagnostics.

It is not optimized for rapid SKU switching (e.g., frequent changeovers between 330mL and 18.9L), nor for non-PET containers like glass or aluminum.

Next Step: Validate Against Your Site Conditions

Before finalizing specifications, confirm:

• Your raw water analysis report (TDS, hardness, iron/manganese, microbiology);
• Bottle supplier’s dimensional tolerance documentation;
• Available floor space, power supply (380V/50Hz), compressed air quality (ISO 8573-1 Class 2), and drainage capacity;
• Cleanroom classification target and airflow mapping data.

Chuxin Mingwei engineers use these inputs to calibrate the machine’s motion profile, rinse cycle duration, fill volume algorithm, and cap torque settings — ensuring stability, applicability, and long-term maintainability.
