Diagnosing Filling Line Anomalies: When to Audit Your Industrial Clean Air Solutions

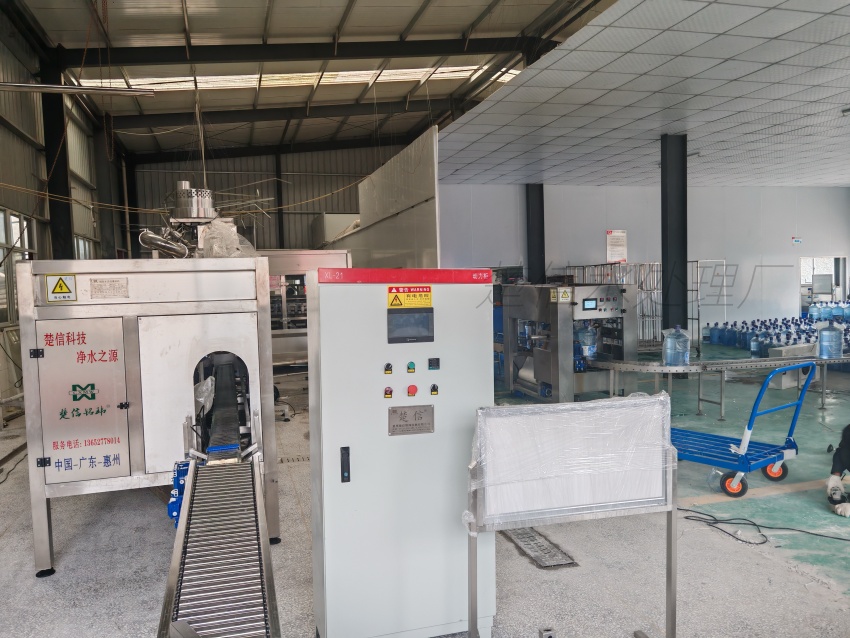

Operators managing a bottled spring water production line or 18.9L bottled water equipment frequently encounter intermittent anomalies: unexplained microbial spikes post-filling, liquid splashing during the fill cycle, or persistent sealing leaks. While the immediate instinct is to recalibrate liquid valves or adjust capping heads, the root cause often lies in the facility's environmental control boundaries.
As a Huizhou water treatment manufacturer, Chuxin Mingwei emphasizes that mechanical adjustments cannot compensate for airflow and pressure failures. This guide uses a myth-versus-fact framework to help operations leads and technicians diagnose these issues accurately, focusing on how Industrial Clean Air Solutions interact with spring water filling equipment.

1. Post-Filling Microbial Spikes

The Myth: The enclosed 3-in-1 washing-filling-capping monoblock is fully sealed, making the ambient air quality in the filling room irrelevant to product safety.
The Fact: Integrating washing, filling, and capping into a single 3-in-1 machine minimizes transfer distances and reduces bottle mouth exposure, but it does not replace the need for frontend water treatment or environmental packaging controls. The open interfaces during bottle infeed and the cap sorting chutes remain highly vulnerable to airborne particulates and microbial ingress if the room's HVAC is compromised.
Diagnostic Steps:

1. Pressure Gradient Verification: Use a digital manometer to verify that the filling room maintains a positive pressure gradient (typically 5-15 Pa) relative to adjacent packaging or raw material zones.
2. HEPA Differential Check: Inspect the pressure differential gauges across the H13 HEPA filters in your Industrial Clean Air Solutions. A reading outside the normal operating range indicates filter loading, which reduces the sterile air curtain velocity over the filling zone.

Condition & Exception: If the positive pressure and HEPA filters are verified to be functioning correctly, the contamination source is likely upstream. You must then audit the NF spring water equipment for biofilm formation in the storage tanks or check the ozone/UV sterilization dosage before blaming the cleanroom environment.

2. Filling Splashing and Volume Inconsistency

The Myth: Splashing and minor volume fluctuations are exclusively caused by faulty liquid valves, pump cavitation, or unstable water supply pressure.
The Fact: While valve mechanics are critical, severe air turbulence from improperly zoned Industrial Clean Air Solutions can physically disrupt the laminar flow of the water stream, especially in high-speed spring water filling equipment. If the cleanroom supply air diffusers are positioned directly above the open filling nozzles without proper airflow straightening, the cross-draft will cause micro-splashing, leading to wet bottle necks and subsequent capping issues.
Diagnostic Steps:

1. Airflow Velocity Mapping: Use a thermal anemometer to measure the air velocity directly above the filling carousel. The airflow should be a uniform, low-velocity laminar downflow (typically 0.2 to 0.45 m/s for ISO Class 8 environments), not a turbulent cross-draft.
2. Diffuser Adjustment: If turbulence is detected, adjust the directional louvers on the cleanroom ceiling diffusers to redirect the primary airflow away from the direct nozzle path.

Condition & Exception: If the splashing only occurs on specific containers, the issue is mechanical seating, not airflow. For instance, when processing recycled 18.9L barrels, variations in barrel mouth dimensions or deformation from previous use will prevent the filling nozzle from sealing properly, causing splash-back regardless of the cleanroom airflow dynamics.

3. Cap Contamination and Sealing Leaks

The Myth: If a bottle leaks after capping, the operator should simply increase the capping torque on the magnetic clutch to force a tighter seal.
The Fact: Simply increasing capping torque is a flawed approach; excessive force damages the cap or bottle mouth, while insufficient force compromises the seal. Furthermore, if the cap chute is located outside the protected zone of the Industrial Clean Air Solutions, dust or microbial particulates can settle on the cap liners. When applied, these particulates create micro-channels in the seal, causing leaks that no amount of torque can fix without crushing the plastic.
Diagnostic Steps:

1. Torque Calibration: Halt the line and use a calibrated digital torque meter. Compare the applied torque against the packaging supplier's exact specifications for that specific preform and cap combination.
2. Cap Chute Zoning Audit: Verify that the cap elevator and sorting chute are fully enclosed within the ISO Class 8 cleanroom boundary or have their own localized HEPA-filtered positive pressure enclosure.
3. Visual Liner Inspection: Randomly sample caps from the chute and inspect the inner TPE liners under magnification for embedded particulates.

Condition & Exception: If the cleanroom environment is verified and torque is calibrated, but leaks persist, the root cause is likely dimensional inconsistency in the incoming batch of caps or preforms. In this case, the procurement team must enforce stricter incoming quality control (IQC) tolerances with the packaging supplier, as the filling machine cannot mechanically compensate for out-of-spec plastics.

Operational Boundaries and Next Steps

Operators and maintenance teams can safely execute pressure checks, filter monitoring, and torque calibrations. However, modifying the ductwork of the Industrial Clean Air Solutions, altering the PLC logic for valve timing, or redesigning the cleanroom pressure zoning requires specialized engineering intervention.
If your facility is experiencing chronic anomalies that cannot be resolved through standard mechanical adjustments, it is time to evaluate the systemic integration of your water treatment, filling mechanics, and cleanroom environment.
