Preventing Secondary Contamination in Water Filling Lines: A Technical Guide to Cleanroom Air System Integration

Preventing Secondary Contamination in Water Filling Lines: A Technical Guide to Cleanroom Air System Integration

When procurement managers and operations leads evaluate a new bottled or barrelled water production line, the primary focus often lands on water purification processes and the filling host machine. However, technical evaluators know that secondary contamination during the filling and capping phases remains a critical risk. For cross-regional project teams, aligning the cleanroom air system with the physical layout of the filling line is a complex problem-solving exercise. This article explains the technical principles of integrating industrial clean air solutions with water filling operations, providing a practical framework for equipment selection and facility optimization.

The Technical Principle of Airborne Contamination in Filling Zones

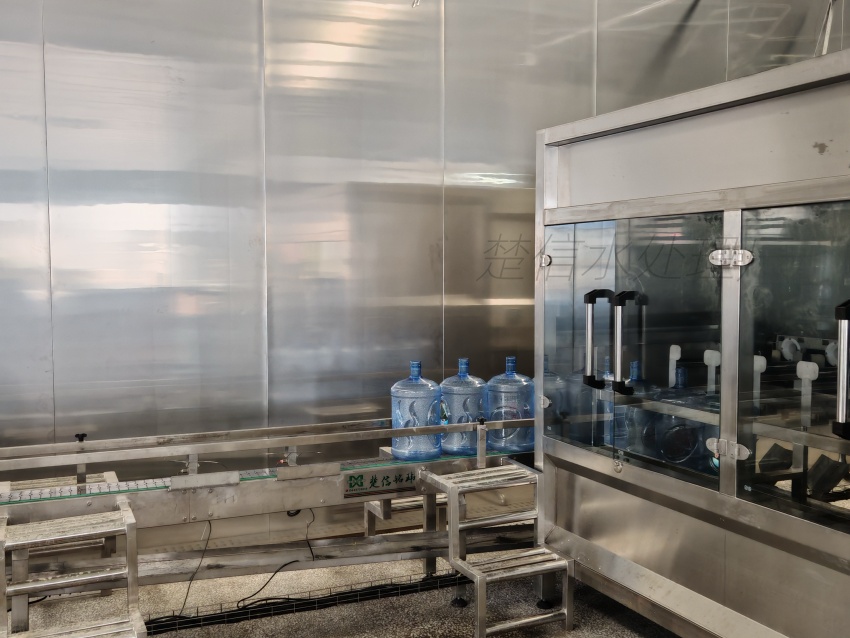

In any beverage or pharmaceutical water facility, the transition of water from a closed treatment loop to the final package introduces exposure risks. While modern equipment, such as the integrated bottle washing-filling-capping unit (3-in-1 machine), significantly reduces transfer distances and bottle mouth exposure between separate machines, the ambient air in the cleanroom still dictates the baseline contamination risk. For 3-gallon and 5-gallon barrelled water lines, the risk is compounded. Processing recycled barrels requires rigorous steps including decapping, external brushing, multi-stage internal washing, and disinfection. These mechanical and chemical actions generate aerosols and particulate matter. Without properly engineered airflow, these contaminants can migrate from the washing zone into the sterile filling and capping areas, compromising the final product.

Decoding Clean Air System Parameters for Technical Evaluators

To solve the secondary contamination problem, technical teams must specify the clean air purification system based on verifiable parameters rather than generic claims. When reviewing equipment proposals, evaluators should verify the following specifications:

• *Cleanroom Compliance:

• The baseline for water bottling and barrelled water filling cleanrooms is ISO Class 8 (100,000) certification. For higher-risk pharmaceutical or specialized beverage applications, the design should be upgradable to ISO Class 7 (10,000).

• *Filtration Efficiency:

• H13 HEPA filters are mandatory to capture microscopic particulates and airborne microbes before they enter the production envelope.

• *Airflow Capacity and Zoning:

• Airflow ranges typically span from 1,500 to 20,000 m³/h, depending on the project-specific room volume and required air changes per hour (ACH). More importantly, the system must maintain positive pressure zoning, ensuring that air flows from the highly sterile filling zone outward toward the barrel washing or packaging areas.

Cross-Team Collaboration in System Integration

Integrating the clean air system with the filling line requires seamless collaboration between the facility engineering team, the equipment manufacturer, and the local installation contractors. Misalignment between these groups often leads to operational bottlenecks.

1. Layout and Duct Routing: The air purification system must be engineered around specific facility constraints. Duct routing should avoid crossing over open filling zones, and return air grilles must be positioned to sweep particulates away from the capping stations.
2. Interface with Filling Equipment: The PLC and HMI control system of the clean air unit should feature real-time diagnostics and a remote-ready interface. This allows the central control room to monitor differential pressure and filter status synchronously with the filling line's operational state.
3. Capacity and Utility Balancing: Just as calculating the filling line capacity requires accounting for CIP cleaning, equipment flushing, and peak buffers, sizing the HVAC and clean air system must account for the heat and moisture generated by the washing and sterilization tunnels.

Implementation Boundaries and Risk Management

Technical evaluators must define clear boundaries in the technical agreement. The clean air system does not replace the need for strict hygiene protocols, such as differentiating the washing processes for new versus recycled PC barrels. Furthermore, the air system's performance is highly dependent on the physical integrity of the cleanroom enclosure. Any gaps in walls, doors, or conveyor pass-throughs will compromise the positive pressure and invalidate the ISO Class 8 compliance. Project teams must ensure that the civil construction standards match the mechanical equipment specifications.

Conclusion and Next Steps

Preventing secondary contamination is not achieved by the filling machine alone; it requires a holistic approach where the clean air purification system is precisely matched to the production scenario. By focusing on ISO standards, H13 HEPA filtration, and intelligent pressure zoning, cross-functional teams can ensure long-term product stability and regulatory compliance. If your project team is currently evaluating the cleanroom requirements for a new bottled spring water or purified water filling line, contact Chuxin Mingwei’s engineering department. We provide site-specific airflow calculations and integrated system designs tailored to your facility constraints and production capacity.
